Product Summary

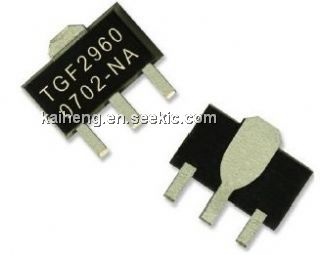

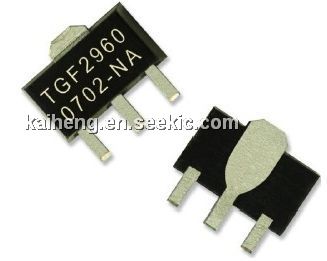

The TGF2960-SD is a high performance 1/2-watt Heterojunction GaAs Field Effect Transistor (HFET) housed in

a low cost SOT89 surface mount package.

The device’s ideal operating point is at a drain bias of 8 V and 100 mA. At this bias at 900 MHz

when matched into 50 ohms using external components, this device is capable of 19 dB of gain,

28 dBm of saturated output power, and 40 dBm of output IP3.

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TGF2960-SD-T/R
TGF2960-SD-T/R
TriQuint Semiconductor
Transistors RF GaAs DC-5.0GHz 0.5 Watt HFET
Data Sheet
0-615: $2.39
615-1000: $2.27
1000-2500: $2.16
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TGF2021-01
TGF2021-01
TriQuint Semiconductor
Transistors RF GaAs DC-12GHz 1mm Pwr pHEMT (0.35um)
Data Sheet
0-50: $7.97
50-100: $6.75
100-250: $6.35
250-500: $5.96
TGF2021-04-SD T/R
TGF2021-04-SD T/R
TriQuint Semiconductor
Power Amplifiers DC-4GHz 5Volts
Data Sheet
0-610: $3.50
610-1000: $3.32
TGF2021-12
TGF2021-12
TriQuint Semiconductor
Transistors RF GaAs DC-12GHz 12mm Pwr pHEMT (0.35um)
Data Sheet
0-150: $16.36
150-300: $15.38
TGF2022-06
TGF2022-06
TriQuint Semiconductor
Transistors RF GaAs DC-20GHz 0.6mm Pwr pHEMT (0.35um)
Data Sheet
0-100: $6.75
100-300: $6.35
300-500: $5.96
500-1000: $5.61
TGF2022-24
TGF2022-24
TriQuint Semiconductor
Transistors RF GaAs DC-20GHz 2.4mm Pwr pHEMT (0.35um)
Data Sheet
0-100: $10.93
100-300: $10.27
300-500: $9.65
TGF2022-48
TGF2022-48
TriQuint Semiconductor
Transistors RF GaAs DC-20GHz 4.8mm Pwr pHEMT (0.35um)
Data Sheet
0-100: $13.58
100-300: $12.77
300-500: $12.01
