Product Summary

The Skyworks CLA series of silicon limiter diodes provides
passive receiver protection over a wide range of frequencies from
100 MHz to over 30 GHz. These devices use the well-established
Skyworks silicon technology resulting in high resistivity and tightly
controlled base width PIN limiter diodes. Limiter circuits using
these devices perform with strong limiting action and low loss.

Features

CLA4608-000 Features
Established Skyworks limiter diode process
High-power, mid-range, and cleanup designs
Low insertion loss: 0.1 dB @ 2.6 GHz
Peak power handling to +74 dBm
Ultra-low spike leakage power
Tight control of I layer base width
Mesa and planar chip designs

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

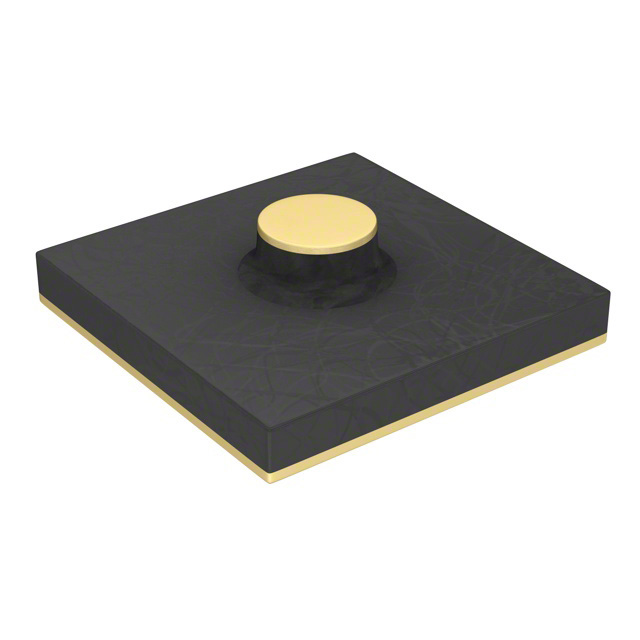

CLA4608-000
CLA4608-000

DIODE LIMITER SILICON 120-180V
Data Sheet
0-50: $3.30
50-100: $3.00
100-500: $2.07
500-1000: $1.65
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CLA4601 Series
CLA4601 Series
Other

Data Sheet
Negotiable
CLA4601-000
CLA4601-000

DIODE LIMITER SILICON 15-30V
Data Sheet
0-100: $3.00
100-500: $2.07
CLA4602 Series
CLA4602 Series
Other

Data Sheet
Negotiable
CLA4602-000
CLA4602-000

DIODE LIMITER SILICON 15-30V
Data Sheet
0-50: $3.30
50-100: $3.00
100-500: $2.07
CLA4603 Series
CLA4603 Series
Other

Data Sheet
Negotiable
CLA4603-000
CLA4603-000

DIODE LIMITER SILICON 20-45V
Data Sheet
0-50: $3.30
50-100: $3.00
100-500: $2.07
