Product Summary

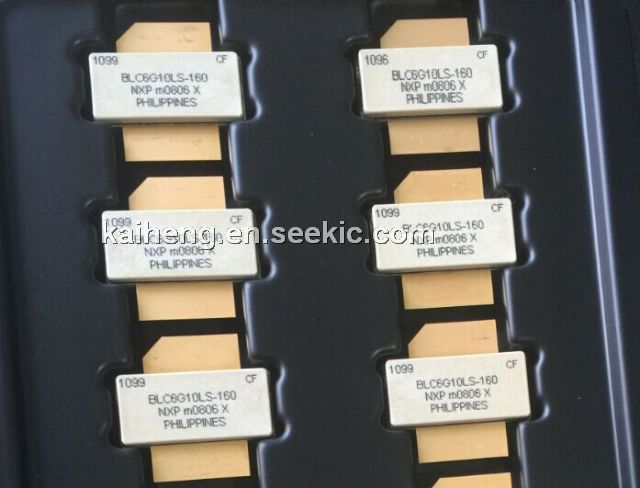

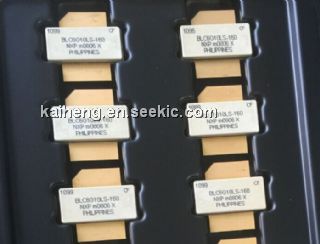

BLC6G10LS-160 Applications
RF power ampli?ers for GSM, GSM EDGE, W-CDMA and CDMA base stations and
multi carrier applications in the 800 MHz to 1000 MHz frequency range.

Features

BLC6G10LS-160 Features
Typical 2-carrier W-CDMA performance at frequencies of 920 MHz and 960 MHz, a
supply voltage of 32 V and an IDq of 1200 mA:
Average output power = 32 W
Power gain = 23 dB
u Ef?ciency = 28 %
u ACPR = ?40 dBc
n Easy power control
n Integrated ESD protection
n Excellent ruggedness
n High ef?ciency
n Excellent thermal stability
n Designed for broadband operation (800 MHz to 1000 MHz)
n Internally matched for ease of use
